Review on Heat Transfer Enhancement by Internal Obstructions in Enclosed Cavities under Natural Convection

Convection inside cavities has received a great deal of study because it is fundamentally different from heat transfer (HT) on external surfaces, where boundary conditions play a pivotal role in controlling the heat transfer rate (HTR) and fluid flow inside closed cavities. This in turn leads to non-uniform heat distribution in a cavity, a fundamental challenge for researchers. The cavities are a promising field in many industrial applications. Rapid progress in the field of computing and simulation software has provided researchers with an opportunity to investigate HT and fluid flow in cavities and use complex boundary conditions and invent more complex shapes and different parameters to enhance HT performance [1].

The importance of obstacles inside cavities emerged with the emergence of the importance of heat convection and its consideration as a promising, clean and economical technique that can be exploited in electronic cooling and heat dissipation in various current industries [2]. In recent research, Rashid et al. [3] used a wavy channel to in enhance the HTR. Hashim et al. [4] studied HT through a wavy wall. Nasir et al. [5] examined inspected irreversibility phenomenon produced by thermal exchange in nano liquid flow past a radially flexible disk. Sadeghi et al. [6] investigated the effect of fins on HT performance.

Recently, nanofluids have attracted extensive research interest due to their exceptional HT properties and their potential exploitation in a wide range of possible applications, including: energy storage systems, HT enhancement, solar collectors, crystal growth in magnetically influenced cavities, Cooling electronic systems, nuclear reactors, metal cooling in open-surface reservoirs, technologies of biomedical [7], and automotive thermal control systems [8]. Li et al. [9] employed an artificial neural network (ANN) backpropagation technique, Amplified with the Bayesian regularization approach. Numerical simulations were carried out by Cherif et al. [10], to depict hydrothermal attributes generated by spinning heated obstacles fitted in triangular chamber. Role of gradients produced by buoyantly driven forces to enhance exchange in heat by placing obstruction in a chamber was revealed by Khan et al. [11]. Abed et al. [12] investigated the effect of magnetic field (MF) on HT. Abdulsahib et al. [13]. Studied the effect of objects inside cavities on the HTR.

Minea [14] classified hybrid materials into three types based on electron orbitals and covalent bonding between polymerized silanol molecules. Turcu et al. [15] found that hybrid nanofluid enhance HT due to a synergistic effect compared to mono nanofluid. Huminic and Huminic [16] showed that hybrid nanoparticles, due to their improved physiochemical properties, offer better thermal performance and stability than single nanoparticles. Nasir et al. [17] mathematically analyzed hybrid nanofluid flow under mixed convection, considering radiative energy and nonlinear thermal effects over an exponential domain. Chamkha et al. [18] Surveyed natural convection (NC) in a semicircular cavity and this numerical study proved that the hybrid nanofluid enhances HT better than the conventional fluid. There are many excellent works that have been adopted for the purpose of benefiting from them in how to exploit hybrid nanofluids in various engineering and industrial applications [19].

The elements or objects inside cavities helps control HT by providing both passive and active HT, which contributes effectively to many applications in automotive, electronics, aerospace, vacuum and engineering systems [20]. Moukalled and Acharya [21] studied of the effect of a rotating solid body inside a closed cavity, as this body affected the formation of vortices and HT. Nasir et al. [22] tried to control the HTR of a nanofluid by introducing a magnetic field. Dutta et al. [23] found that the magnetic field inhibits HT. Nasir et al. [24] used computational to design a trihybrid nanofluid, show significant superiority in thermal properties compared to conventional fluids.

Saha [25] Investigate the effect of magnetic field on NC in a trapezoidal cavity filled with a nanofluid. Geridonmez and Oztop [26] examined the effect of crossed, partially guided magnetic fields on the hydrothermal performance of nanofluids in an enclosure, and reported a weakening in convective flow strength. Similarly, Alsabery et al. [27] analyzed the role of solid nanoparticle inclusion in enhancing thermal performance, attributing the improvement to the intensified magnetic field effects. Sreedevi and Reddy [28] assessed the effect of Brownian motion on HT.

Saravanan and Sivaraj [29] analyzed the interaction between thermal radiation and NC in a square cavity including a heat source. It was shown that with increasing the dimensions of the heat source, the HTR will improve, as heat convection increases in the upper part of the cavity while heat conduction dominates in the lower part of the cavity. Rahimi et al. [30] examined NC in a cavity filled with a nanofluid, and the effect of the internal heater position, as well as the Ra and nanofluid concentration, on HT and entropy generation was investigated. The results of this study showed that the heater position affects the fluid flow and the Nusselt number (Nu) increases with increasing nanofluid concentration and increasing Ra.

The effect of the upper wavy wall of a square cavity filled with a nanofluid analyzed by Uddin et al. [31], The results showed that the HT improved by 20% with increasing the Ra, wall number, and nanoparticle concentration, while it decreased with increasing the Hartmann number (Ha) and nanoparticle size. The wavy walls of the cavities increase NC but the increased number of waves reduces the Nu [32]. A study by Ismail et al. [33] showed that the presence of an obstacle within the cavity affects the fluid flow and creates a hydrodynamic obstruction.

Kalidasan and Kanna [34] studied NC in an L-shaped cavity and the effect of the presence of body inside the cavity filled with a hybrid nanofluid. Mohebbi and Rashidi [35] determined that the greatest HT occurs when the obstacle is located near the lower left corner of the cavity. Bouchoucha et al. [36] explored generation of entropy in cavity with a thick bottom wall and found that increasing the thickness of wall results in a reduction in generation of entropy.

Many studies have showed that increasing Ra significantly enhanced NC, leading to a higher Nu and increased HT efficiency [37]. In the work of Armaghani et al. [38], examined NC of a (Al$_2$O$_3$-H$_2$O) in an L-shaped cavity equipped with a baffle.

The current study aims to shed light on the obstacles and objects present inside cavities filled with different fluids. It shows that there is a lack in the experimental researches and a scarcity in comparisons between experimental and numerical results, as well as being limited only to conventional obstacle shapes (square, rectangular, cylinder, triangle, ..., etc.) without verifying more complex shapes. This is the research gap in this study.

This review uniquely covers recent studies from 2020 to 2025, proposes a new classification for obstacle shapes (simple vs. complex), analyzes contradictory findings in obstacle configurations, and presents a comparative discussion of Finite Element Method (FEM) and Finite Volume Method (FVM) approaches elements not addressed in previous reviews.

In the next part of the review, the review is structured based on the types of obstructions within the cavities.

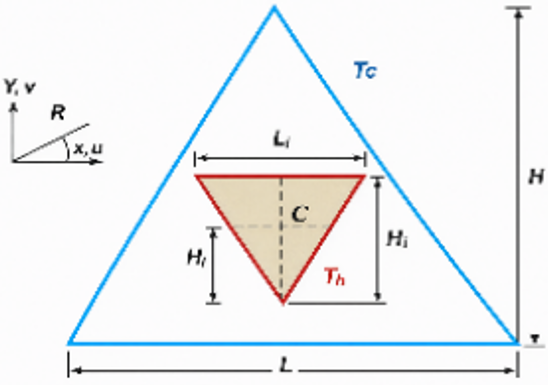

Chatterjee et al. [39] studied NC of a (Al$_2$O$_3$-H$_2$O) in triangular cavity containing an inverted triangular hot obstacle. FEM was used. Parameters used, including Ra (10$^3$–10$^6$) and the size of obstacle. The results showed that the best HTR is achieved at the smallest obstacle size, smaller obstacle size means less obstruction to fluid flow. Roshani et al. [40] studied NC of a (Al$_2$O$_3$-H$_2$O) in a triangular cavity containing obstacles inverted triangle. parameters such as Ra (10$^3$–10$^5$) was studied. This study proved that the obstacle enhanced HT and thus resulted in an increase in the Nu values. The obstacle within the cavity disrupts the streamline, creating local vortices. These vortices move the fluid better near hot and cold surfaces, reducing the thickness of the thermal boundary layer. Yaseen et al. [41] studied NC in triangular enclosure filled with a shear-thinning non-Newtonian fluid, Results showed that increasing Ra intensifies convection and improved ($N \bar{u}$). Lower power-law index (n) values, representing stronger shear-thinning behavior, lead to higher $N \bar{u}$ due to reduced viscosity. The best HT occurred when the obstacle was placed closest to the heated base (B = 0.2 H).

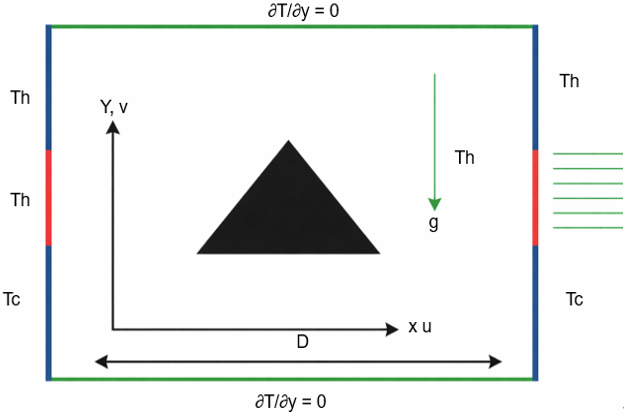

Mahmuda and Ali [42] studied NC of (Al$_2$O$_3$-H$_2$O) in a square cavity containing a centrally placed heat-conducting triangular obstacle. The influence of a transverse magnetic field was considered using the FEM. The effects of the Ra, Ha, and ($\phi$) were investigated. Results indicated that the obstacle enhances fluid mixing and generates thermal vortices, leading to thinner thermal boundary layers and an increased Nu, thus enhancing HT. Increasing Ra strengthened convection, while higher Ha values suppressed flow intensity due to magnetic damping. Furthermore, adding nanoparticles enhanced thermal conductivity and improved the overall thermal performance of the system.

Maneengam et al. [43] used Generalized Finite Element Method (GFEM) to investigate the HT in a square cavity with a wavy bottom wall filled with a hybrid nanofluid inside which several obstacles of different shapes were placed. The study proved that the triangular obstacles provided the best HT, and that increasing the undulations and Ha reduces the HT efficiency. The triangular obstacles enhanced the Nu by 15.54%. The reason for this is that the triangular obstacles accelerate the fluid flow and increases the temperature gradient near the hot wall. The FEM is preferred in NC studies due to its accuracy and flexibility in handling complex geometries and boundary conditions. In contrast, the FVM, despite its strong conservation properties, faces challenges in such scenarios. As a result, most recent studies have adopted FEM as the primary modeling approach.

Table 1 presents an organized summary of the most prominent previous studies in terms of reference, researchers, mathematical model, working fluid, study parameters, geometry, physical model, as well as other aspects related to the subject of the study.

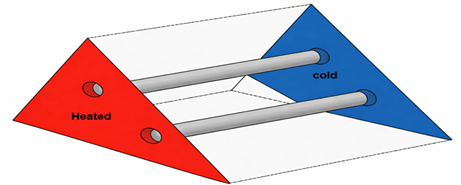

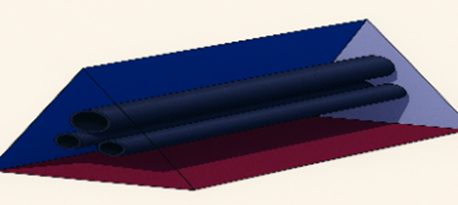

Ghoben and Hussein [44] confirmed that the use of cylinders obstacles inside cavity enhances NC due to the increase in turbulent flow. double aligned cylinders have a negative effect on the Nu, while the best values of the Nu occur when double non-aligned cylinders. The cylindrical obstacles is enhancement and suppression of HT within cavities. The HTR enhances with increasing heat source diameter, as a result of (Increased surface area for heat exchange) and that non-uniform heating gave best a result of (creating more effective gradients of temperature) [45]. The contradiction between the results of studies [44], [45] can be explained by several factors. First, the boundary conditions differ: study [44] employed uniform wall heating, while Jalili et al. [45] used non-uniform (sinusoidal) heating at the base of the cavity, which leads to different heat distribution patterns. Second, the geometric dimensionality varies, as Ghoben and Hussein [44] analyzed a three-dimensional cavity, whereas [45] focused on a two-dimensional one—significantly affecting flow behavior. Third, each study emphasized different characteristics: Ghoben and Hussein [44] examined the impact of obstacle alignment (aligned vs. non-aligned), while Jalili et al. [45] investigated the effect of obstacle number and size. Finally, the variation in heating methods and resulting flow patterns contributes to the differences in temperature fields and thermal performance, as reflected in the Nusselt number outcomes. Belmiloud et al. [46] investigated NC in a triangular cavity with inclined isothermal walls maintained at TC and a thermally insulated base. The cavity contains a cylindrical heat source at temperature TH and diameter D, placed within a nanofluid composed of H$_2$O and TiO$_2$. The study examines the effects of (0.01 $\leq$ $\phi$ $\leq$ 0.050), (10$^3$ $\leq$ Ra $\leq$ 10$^6$) and heat source position (h) on convective HT enhancement. Results indicate that thermal performance improves with increasing Ra, $\phi$, and heat source diameter. These findings suggest significant potential for optimizing thermal management in systems employing nanofluid-filled triangular cavities with embedded heat sources.

Munir and Turabi [47] proved that the cold body in the middle of the cavity creates a large gradient of temperature between the cold obstacle, and the hot walls which enhances HT. The fluid is also forced to rotate around the obstacle, which enhances mixing and improves HT. It is also divided stream line and this creates thermal vortices that work to raise. Belhadj et al. [48] studied NC within a triangular cavity filled with (Ag-MgO-H$_2$O) under the influence of a magnetic field and featuring a rotating circular obstacle. The triangular cavity contains a porous quarter circle that is uniformly heated and is located at the right-angled corner. In this study, examined important parameters, including (10$^3$ $\leq$ Ra $\leq$ 10$^6$), (0 $\leq$ Ha $\leq$ 80), (10$^{-5}$ $\leq$ Da $\leq$ 0.15), rotational velocity ($\omega$), and the circular radius (rob). The results indicated that HTR increases with the Ra and decreases with the increase of the Ha. The presence of a porous medium enhances HT, and increasing its thickness enhances HT. the variations in the obstacle's rotational velocity, size, and cavity geometry significantly influence transport of energy within the cavity.

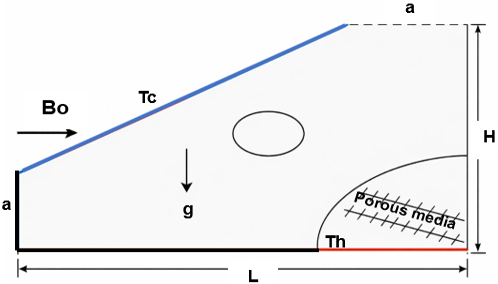

Chabani et al. [49] studied the HT by a Cu-TiO$_2$/EG in a triangular, zigzag porous cavity containing different cylinders inside and exposed to an inclined magnetic field. The effect of several parameters was examined, including (10$^3$ $\leq$ Ra $\leq$ 10$^6$), (0 $\leq$ Ha $\leq$ 100), (0.02 $\leq$ $\phi$ $\leq$ 0.08), and the cylinder rotation speed (-400 $\leq$ w $\leq$ 4000). This study concluded that increasing all parameters will increase HTR except for the Ha, where the HTR decreases with Ha increase.

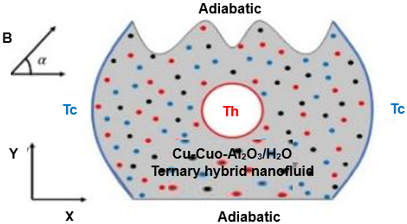

Bilal et al. [50] presented analysis of HT within a crown-shaped wavy cavity containing a centrally located heated circular obstacle, utilizing a (cu-cuo-Al$_2$O$_3$-H$_2$O). The effects of the obstacle’s radius, ($\phi$), Ra, and Ha under an inclined magnetic field were investigated. The results showed that increasing both the obstacle size and the ($\phi$) significantly improved HTR, leading to an enhancement in the average Nu. In contrast, increasing the Ha suppressed fluid motion and reduced the efficiency of convective HT.

Aslam et al. [51] used FEM to analyze NC resulting from the temperature difference between the cavity walls and the internal obstacle. A H$_2$O was used to fill the three-dimensional, pyramid-shaped cavity with a hot, circular internal obstacle in the middle. This study found that the obstacle helped enhance HT, especially with non-uniform heating, as it contributed to the creation of strong thermal vortices, which enhanced the mixing between the hot and cold layers.

Turabi et al. [52] studied NC in a staggered Cavity containing a pair of compact circular cylinders. Cavity filled with (Cuo-Al$_2$O$_3$) with H$_2$O or ethylene glycol as the base fluid. This study found that each cylindrical obstacle acts as a barrier and creates strong vortex regions, which increases the mixing of the hybrid nanofluid and thus enhancement HT efficiency. The cylindrical obstacle increases turbulence and thus raises the Nu values.

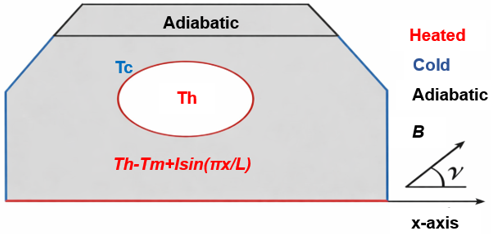

Majeed et al. [53] investigated NC characteristics inside a hexagonal cavity containing a centrally placed heated circular obstacle. This numerical study using Casson fluid. The study contemplated the effects of the Ha, Aspect Ratio (AR), Casson number, Lewis number (Le), buoyancy ratio, and magnetic field inclination angle. The presence of the heated circular meaningfully improved local heat and mass transfer by generating strong vortical flows and thinning the thermal boundary layers. Increasing the obstacle size AR resulted in enhanced HTR, while the application of a magnetic field suppressed convection by magnetic damping. generally, the heated circular obstacle functioned as a crucial element in enhancing thermal performance in the hexagonal cavity.

Ali et al. [54] studied HT by using the FEM in a square cavity containing a solid heat-conducting circular obstacle, thermally conductive obstacle centered in the center of the cavity. A Casson fluid was used. This study proved that the circular obstacle generates strong vortices around it, which significantly changes the flow patterns. This in turn increases the turbulence in the flow and thus enhanced HTR.

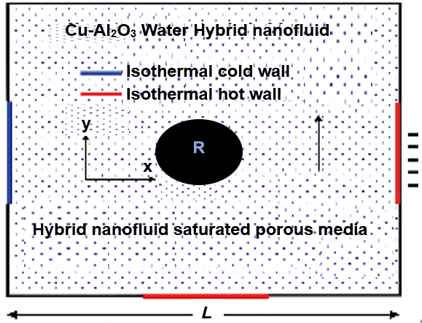

Akhter et al. [55] investigated NC in a square cavity with a porous medium saturated with a hybrid nanofluid. The effect of a hot cylindrical conductive barrier installed in the cavity center was studied. It was found that the cylindrical obstacle directly affects the flow distribution, creating vortices around the obstacle. This enhances thermal mixing and enhanced HT from the hot wall to the cold wall, thus increasing the Nu.

Shaker et al. [56] studied HT in a square cavity filled with H$_2$O containing five adiabatic cylindrical obstacles. This study found that the obstacles led to an increase in HTR and thus the Nu improved with increasing (10.4%, 12%, 16%, and 19%) respectively with the diameters of the obstacles (0.5, 1, 1.5, 2 cm). This study proved that with increasing the number of obstacles inside the cavity, an additional enhancement in HTR occurs.

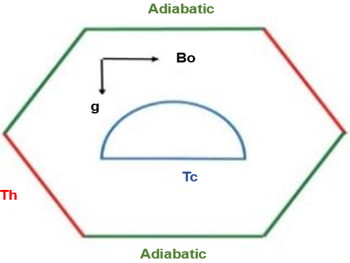

Shirin [57] studied NC in a hexagonal cavity. The cavity contains air and a semicircular obstacle located in the cavity center. The results concluded that the semicircular obstacle led to a modification in the distribution of the streamlines, as multiple vortices were formed around the obstacle, thus stimulating convection currents, especially with the increase of the Ra Improved convection HT at high Ra, due to increased buoyancy force and increased formation of thin thermal boundary layers near the obstacle and hot walls.

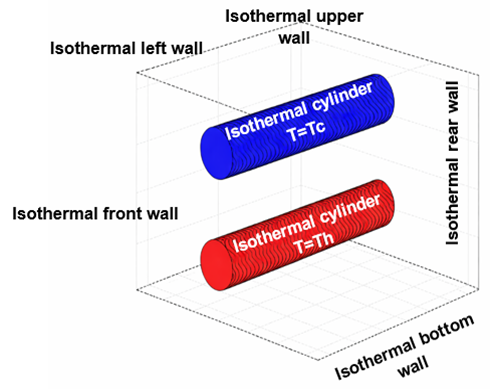

Spizzichino et al. [58] analyzed the instability characteristics of a 3D NC flow inside a cold cubic cavity containing hot and cold horizontally aligned cylinders. Simulations at different cylinder distances and Ra revealed that the transition to unsteady flow occurs via the first Hopf bifurcation, preserving reflectional symmetries. The impact of cavity boundary proximity on flow instabilities was highlighted, clarifying how object orientation and spacing influence the spatiotemporal symmetries of slightly supercritical flows.

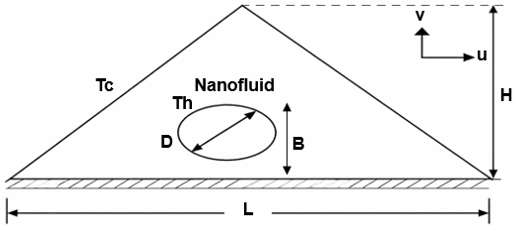

Shahzad et al. [59] analyzed double-diffusive NC within a triangular cavity containing an elliptic obstacle under the influence of a MF. Using the GFEM, the effects of important parameters such as Ha, Ra, Le, and magnetic field inclination were analyzed. Results indicated that the elliptic obstacle played an essential role in modifying flow patterns, intensifying vortical structures near the lower cavity, and improving the local heat and mass transfer. The obstacle, interacting with the MF, effectively controlled the thermal and concentration distributions. Table 2 shows a summary of previous studies related to the topic of the current research with regard to cylindrical and circular obstacles, in terms of reference, researchers, mathematical model, working fluid, study parameters, geometry, and physical model.

Alsayegh [60] studied NC in a square cavity filled with a hybrid fluid. A hot rectangular obstacle is located in the center of the square cavity, connected to the bottom hot wall. the hot obstacle creates strong buoyancy-driven convection flows and strong thermal vortices are formed. This results in improved mixing and increased HT. However, increasing the obstacle size narrows the flow path, thus restricting the flow of the hot fluid and reducing the thermal efficiency.

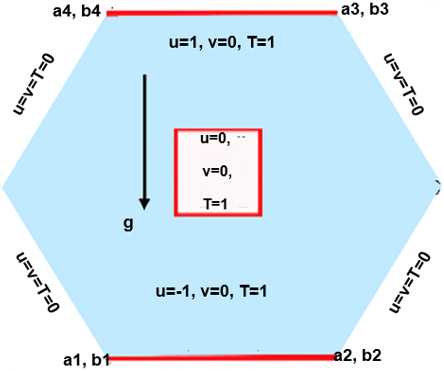

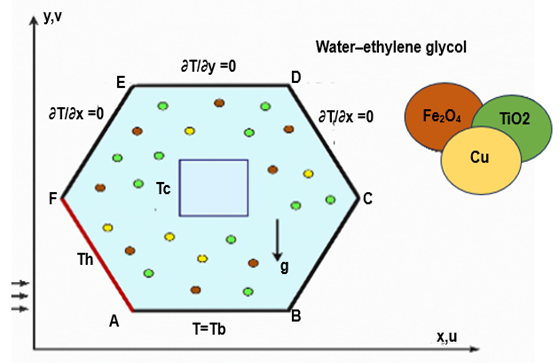

Thilagavathi and Prasad [61] studied NC in a hexagonal cavity containing a cold square obstacle. The cavity is exposed to a magnetic field and filled with (Fe$_3$O$_4$ + TiO$_2$ + Cu-H$_2$O). The result of this study is that the presence of a cold obstacle enhances HT and increases the Nu. As the Ha increases, the Lorentz force is generated, weakening convection and shifting toward conduction-dominated HT.

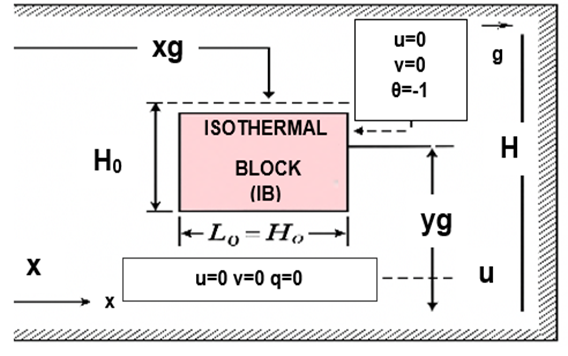

Borahel et al. [62] investigated HT in a rectangular cavity filled with air, containing an isothermal square block placed at different location. The results showed that the block's location significantly affects the flow patterns within the cavity. The study further confirmed that horizontally oriented cavities (low AR) produce higher Nu compared to vertically oriented cavities. Horizontal cavities (low AR) allow better flow circulation, thereby improving HT, whereas vertical cavities (high AR) cause flow confinement, which weakens the convective HT.

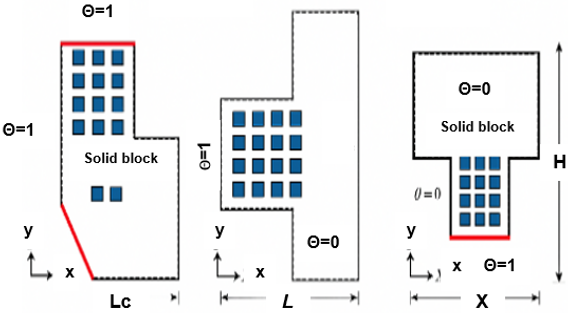

Santos et al. [63] A studied NC in a square open cavity containing 16 square, solid, thermally conductive obstacles. The obstacles are uniformly distributed within the cavity. The square, thermally conductive obstacles affect the flow in several ways: Directing internal flow through flow channels which alters the nature of the flow lines. Forming unyielded regions at high Bingham number. Influencing temperature distribution and creating a transition between natural and conductive convection modes. The presence of a centrally heated square obstacle in the lid-driven hexagonal cavity significantly modifies the flow and thermal fields. Higher Gr and Pr improve NC and overall HT, while higher Re suppress the buoyancy-driven flow leading to a conduction-dominated regime. Increasing the power-law index intensifies the velocity field and promotes stronger convective currents [64].

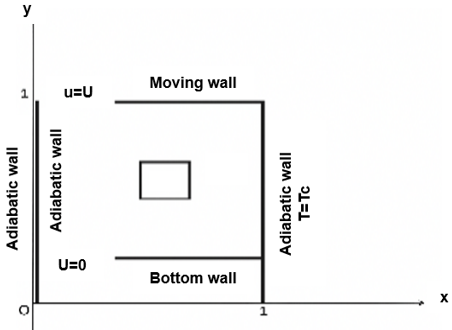

Ayaz [65] used LBM to numerically analyze a mixed convection in a square cavity with a square obstacle in the middle of the cavity. The cavity is filled with a viscous fluid. The results of this study show a comparison of the most important cases studied, where the case 1 was without an obstacle, the case 2 was a cold obstacle, and the case 3 was a hot obstacle. This study concluded that the hot obstacle gave the best results in increasing the HTR.

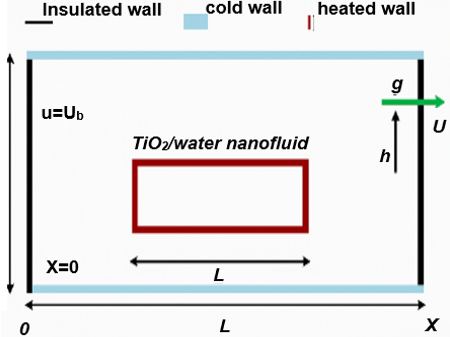

Bouaraour and Lebbi [66] studied of HT of a hybrid nanofluid filling a rectangular cavity with an (AR = 5) containing a rectangular hot obstacle. This study found that increasing ($\varphi$ = 0.08) led to an improvement in the HTR by 9.8%. The obstacle also contributed to increasing the asymmetry of the flow, which improved the HT. The hot obstacle leads to an increase in the temperature gradient, and thus improved the overall thermal conductivity and thus increases the Nu by 4.5%.

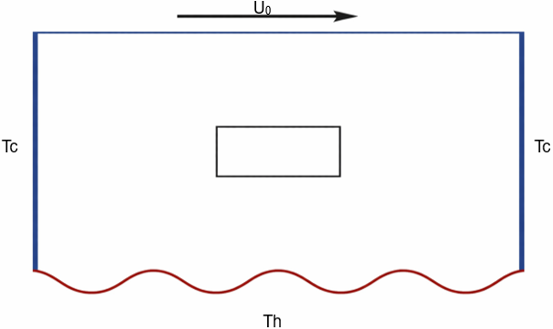

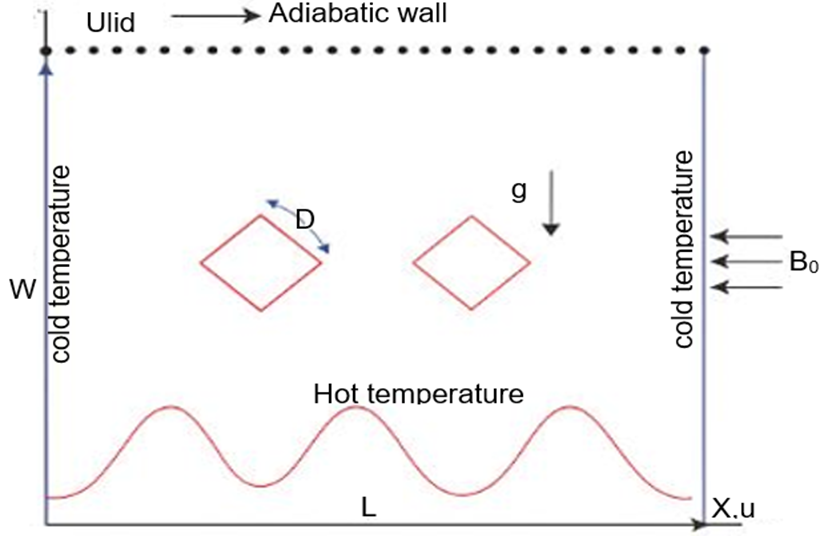

Ali et al. [67] studied HT in a square cavity with a wavy bottom wall containing an inclined square obstacle, used FEM to investigated mixed convection of pure H$_2$O in cavity. This study concluded that the obstacle size affects the HTR. The incline of the obstacle improved the HT performance by enhancing the vortices generated around the obstacle and assisting in the free flow of the fluid. The presence of undulations within a certain number (3) also enhanced HT efficiency.

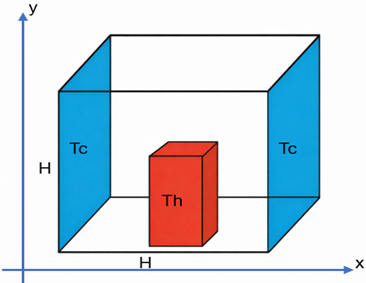

Sannad et al. [68] studied NC of 3D numerically using FVM with the (Boussinesq) approximation. 3D Cubical Cavity with Heated Partition. (Uniformly Heated Partition attached to the Left Wall). The results were summarized as follows: with high Ra, the thermal improvement was more evident, and the use of nanofluid increased the HT efficiency with increasing the ($\varphi$). The Heated Partition Induced Vortical Flow Structures and improved distribution of heat). The larger partition length resulted in improved NC due to the increased area of effective thermal.

Table 3 shows a summary of previous studies related to the topic of the current research with regard to square and rectangular obstacles, in terms of reference, researchers, mathematical model, working fluid, study parameters, geometry, and physical model.

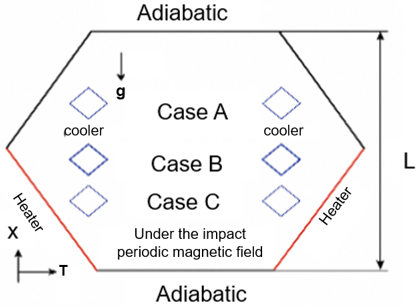

Nayak et al. [69] studied NC, and used the FEM for a nanofluid in a hexagonal cavity with a diamond-shaped cold obstacles inside cavity. This study relied on Ra, and Ha. The results showed that increasing the Ra from 10$^5$ to 10$^6$ improved the Nu by an increase of 76.16. The location of the rhomboidal obstacle affects the Nu When the obstacle is top of the cavity, the Nu increases by 6.3%. In the case 2, the obstacle is bottom of the cavity, the Nu decreases by 7.5%. (Positioning obstacles at the top enhanced NC due to higher density differences and stronger buoyancy flow). (Placing obstacles at the bottom weakened NC due to reduced buoyancy forces).

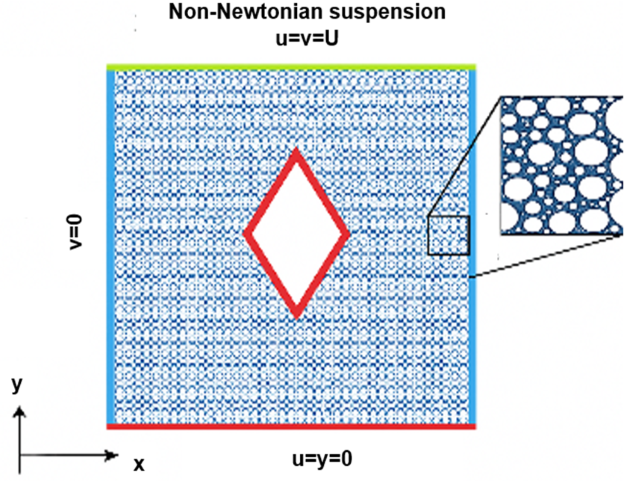

Rehman et al. [70] studied the NC of a Casson fluid in a square cavity with a porous medium. The cavity contains uniformly heated diamond-shaped obstacle. The results showed that increasing the Ra enhances the flow and increases HT. Increasing the Da also increases the permeability, thus reducing the flow resistance and accelerates the fluid velocity. The obstacle causes the formation of strong thermal vortices and a distinct pressure distribution inside the cavity, thus increasing Nu. Table 4 shows a summary of previous studies related to the topic of the current research with regard to specific obstacles, in terms of reference, researchers, mathematical model, working fluid, study parameters, geometry, and physical model.

Numerical solutions are an essential tool for studying (3D-NC) within cavities of various geometric shapes. A set of governing equations is used according to the nature of the study, whether in steady-state or unsteady-state conditions. These equations (1–5), which are used to describe fluid motion and HT within it. In this research, the unsteady form of these equations will be shown for both conventional and nanofluid respectively [71].

The continuity equation [72]:

The momentum equation [72]

x-direction:

y-direction [72]:

z-direction [72]:

The energy equation [72]:

In the case of nanofluids, the governing equations are modified to account for the presence of solid nanoparticles, which alter the fluid's effective thermophysical properties for instance thermal conductivity, viscosity, and density [73]:

The momentum equation [73]

x-direction:

y-direction:

z-direction:

The energy equation:

where, $\rho_{n f}$, $\mu_{n f}$, $\alpha_{n f}$ are given by [74]:

Maxwell gave the equation below [75]:

Hamilton and Crosser [76] developed the Eq. (15) and it became

The parameter n represents the shape factor, typically taken as 6 for cylindrical particles and 3 for spherical ones. For spherical nanoparticles, an approximation can be made using the Maxwell-Garnett model [75], expressed as:

Several advanced models have been developed to account for nanoparticle interactions by incorporating higher-order terms, such as those proposed by Jeffrey [77].

where,

And the model of Davis [78] as:

where, $f(8)=0.5$ and $f(10)=2.5$.

The equations below are the governing non-dimensional equations.

$ \begin{gathered} \mathrm{X}=\frac{x}{H} \mathrm{Y}=\frac{y}{H} Z=\frac{z}{H} U=\frac{u H}{\alpha_{-} f} V=\frac{v H}{\alpha_{-} f} W=\frac{w H}{\alpha_{-} f} \\ P=\frac{p H^2}{\rho_f \alpha_f^2} \theta=\frac{T-T_{r e f}}{T_H-T_C} T_{r e f}=\frac{T_C+T_H}{2} R a=\frac{g \beta_f H^3\left(T_H-T_C\right)}{\vartheta_f \alpha_f} Pr=\frac{\vartheta_f}{\alpha_f} \end{gathered} $

The continuity equation:

The momentum equations

x-direction:

y-direction:

The energy equation:

The governing equations above are presented in a general form. In specific numerical studies, boundary conditions (such as isothermal or adiabatic walls) are defined based on the problem setup and objectives.

• Using a triangular obstacle increased the Nusselt number by 76.16% at Ra = 10$^6$, highlighting the significant impact of obstacle shape on heat transfer efficiency.

• Non-aligned cylindrical obstacles showed better thermal performance than aligned arrangements.

• Cylindrical obstacles outperformed square ones by 15%–20% in enhancing thermal performance under the same flow conditions.

• Complex obstacle shapes, such as “T” and “U”, can be utilized in the design of heat sinks for electronic devices.

• These shapes help improve temperature distribution and enhance heat exchange zones within thermal systems.

• Most of the studies conducted are numerical studies and there is a clear lack of experimental studies.

• There is a focus on two-dimensional numerical studies and a lack of three-dimensional numerical studies.

• The shapes of Obstacles were limited to classical shapes (square, triangular, circle, etc.) without touching upon complex shapes such as literal shapes (U, L, T, Y, M, …, etc.).

• The boundary conditions of the obstacles vary. Obstacles may be hot, cold, or adiabatic. This directly affects the HT performance, and Nu values.

• Hybrid nanofluids gave better results than other conventional fluids and mono nanofluids.

• Internal obstacles (cold or hot) play a vital role in increasing HTR by enhancing the temperature gradient and enhancing vortices.

• Obstacles are considered one of the most important means of controlling HTR, as their location within cavities plays a prominent role in changing the velocity and temperature distribution within the cavity, which enhancing or obstructs convection depending on the obstacle position.

• The Nu is clearly affected by the shape of the obstacle (square, rectangle, circle, etc.). Different shapes lead to different flow and vortex patterns, and thus change the thermal performance.

• In natural convection, an obstacle can either impedes or improve the buoyancy force. In mixed convection, or magnetic field-induced (MHD), the obstacle effect becomes more complex.

• Most obstructions enhance thermal performance but may increase entropy generation (this is important for analyzing overall thermal efficiency).

• Although the majority of studies reviewed are numerical, there is a critical need for experimental validation to support and verify these findings.

• Future research should focus on experimental implementations, grid independence tests, and benchmarking against existing experimental data to enhance reliability and practical applicability.
